Introduction: Bridging the Gap in Your Audio Ecosystem

In the world of audio enthusiasts and DIY electronics, the pursuit of perfect sound often revolves around amplifiers, speakers, and source components. However, a critical yet frequently overlooked element is the humble switching mechanism that directs audio signals between these devices. Pre-assembled switch boxes can be expensive, poorly shielded, or lack the specific connectivity a dedicated hobbyist requires. This is where the empowerment of a do-it-yourself approach truly shines. A specific, compact DIY kit enters the scene as an elegant solution, offering a fundamental building block for anyone looking to take control of their audio routing. This isn’t just a product; it’s a project and a component that embodies the spirit of custom audio creation, providing a reliable, customizable, and educational foundation for building a high-quality input selector for any amplifier setup.

First Impressions and Component Analysis: A Compact Foundation

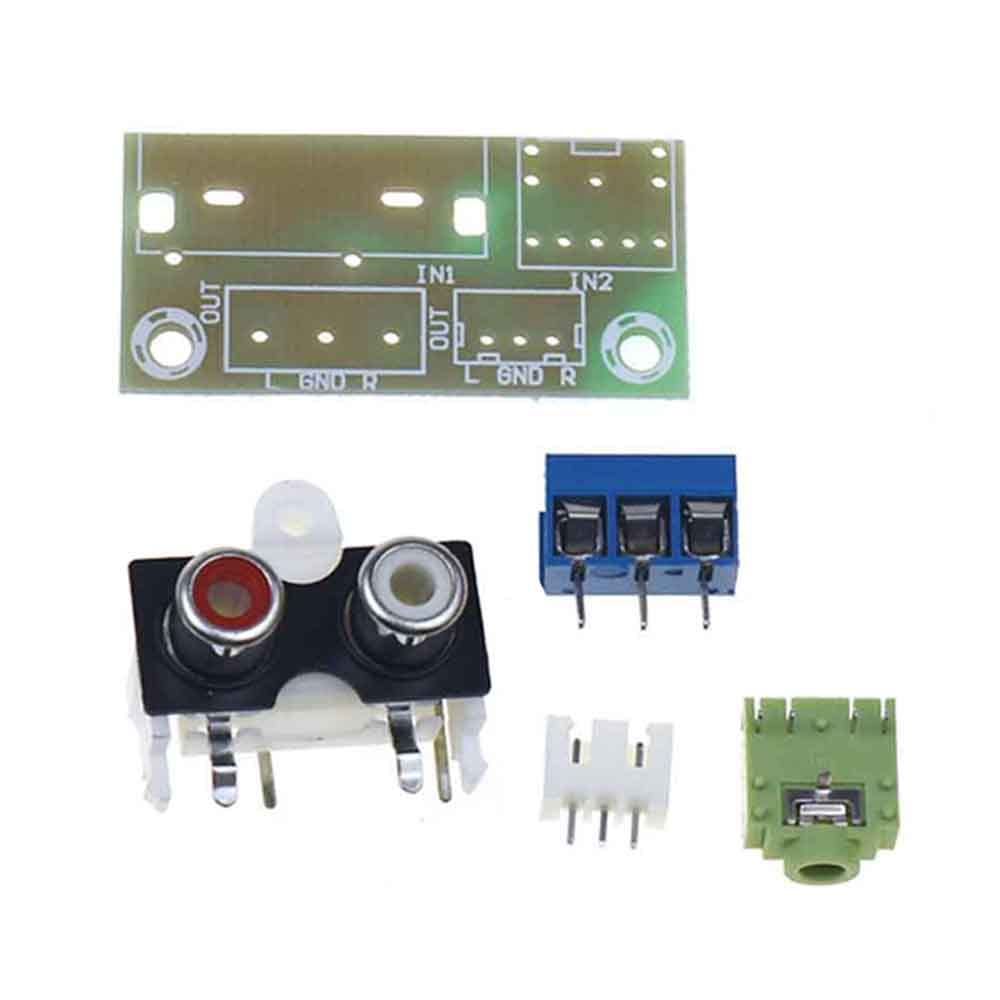

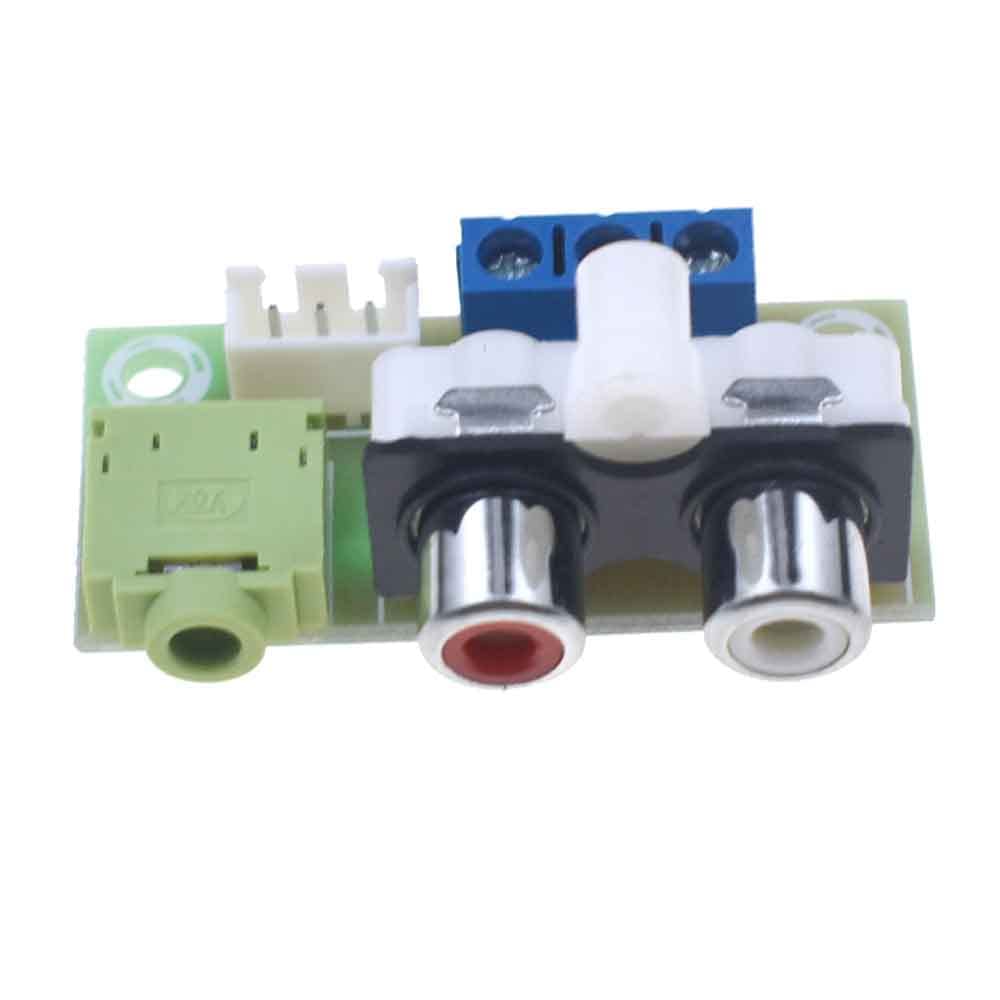

Upon receiving the kit, its minimalist and focused nature is immediately apparent. This is not a sprawling project with dozens of components, but a refined and purpose-built printed circuit board (PCB). The board itself is compact, measuring 4.4 x 2 cm, a size that speaks to its role as a modular component rather than a standalone device. The included components are typically few but essential: the PCB, one or two 3.5mm stereo jacks, and two or three RCA female connectors. The quality of the components is functional and appropriate for the price point, designed for the hobbyist to assemble and integrate. The lack of retail packaging reinforces its identity as a pure DIY component, destined to become part of a larger, custom-built system.

The Core Functionality: What This Audio Switch Board Does

At its essence, this board is a passive audio input block. Its primary function is to provide a hardwired connection between a 3.5mm stereo source (like a smartphone, laptop, or MP3 player) and a set of RCA line-level inputs (commonly found on amplifiers, powered speakers, or other home audio equipment). The “switch” in its name can be slightly misleading; this particular kit is a fixed interface board, meaning it creates a permanent bridge between one specific 3.5mm source and the RCA outputs. To create a true switching unit that selects between multiple audio sources, one would need to integrate this board with a separate selector switch, a common and logical next step for a DIY project. This kit serves as the essential input/output interface upon which a more complex selector box can be built.

The Assembly Process: A Soldering Primer

The assembly of this kit is an excellent soldering project, ideal for beginners looking to practice their skills on a straightforward circuit or for experienced builders needing a quick, functional module.

Step-by-Step Build Guide

1. Component Identification: Lay out all the parts. You will have the PCB, a 3.5mm audio jack, and several RCA connectors. The PCB will have silkscreen labels (white printing) indicating where each part is placed.

2. Preparing the Iron: Heat up your soldering iron to a medium temperature, typically around 350°C (660°F). Ensure the tip is clean and tinned.

3. Soldering the Connectors: Insert the 3.5mm jack and RCA connectors into their designated positions on the top side of the PCB. Flip the board over and solder the pins protruding through the bottom. The key is to apply just enough solder to create a shiny, concave fillet on each pin. Avoid using too much solder, which can create bridges (short circuits) between adjacent pins.

4. Inspection and Testing: Once all components are soldered, visually inspect your work for any cold solder joints (dull and lumpy) or accidental bridges. After inspection, you can connect a 5V power source (as specified) for functionality testing, though the audio signal itself is passive.

The Educational Value of the Build
This project, while simple, teaches fundamental skills in electronics assembly: reading a PCB layout, proper component orientation, and the core technique of creating reliable solder joints. Successfully completing this build provides a tangible sense of accomplishment and a practical component that can be immediately used in a larger system.

Integration into a Larger System: Building a Complete Selector Box

The true potential of this DIY kit is realized when it is integrated into a complete, custom audio solution. It is designed to be the core input module inside a larger enclosure.

Creating a Multi-Source Switch Box
To build a functional audio switch box, a DIYer would need to combine several of these input blocks with a rotary or push-button selector switch. The process would involve:

1. Selecting an Enclosure: A sturdy metal or plastic project box is chosen to house the components, provide shielding, and offer a professional appearance.

2. Incorporating a Selector Switch: A multi-pole, multi-position rotary switch is the traditional choice. This switch would be wired to select the audio signal from one of several input boards (e.g., one for 3.5mm, one for RCA, etc.) and route it to a single set of output RCA connectors.

3. Mounting and Wiring: The completed audio switch board is mounted inside the box, with the 3.5mm jack accessible from the outside. It is then wired into the larger circuit with the selector switch and the master output RCAs.

4. Powering the System: The board requires a stable 5V DC power supply, which can be integrated into the box via a DC jack or a USB power port.

Technical Specifications and Performance

Understanding the board’s electrical characteristics is key to its successful application.

• Working Voltage: The specified 5V is likely used to power an optional active feature, such as an LED indicator to show which input is active, if the board design includes one. The audio signal path itself is typically passive and does not require power to transmit the signal.

• Signal Integrity: As a passive board, its performance is largely dependent on the quality of the soldering, the shielding of the overall enclosure, and the quality of the interconnecting cables used. Properly built and housed, it can provide a transparent and reliable signal path with no audible degradation.

• Connector Quality: The included RCA and 3.5mm jacks are standard fare. For a premium build, a hobbyist could choose to desolder them and replace them with higher-quality, gold-plated connectors for potentially better corrosion resistance and connection integrity.

The DIY Advantage: Customization and Cost-Effectiveness

The primary benefits of using this kit over a pre-made solution are customization and value.

• Total Control: You control the build quality, the choice of additional components (like a high-end selector switch), and the final layout and design of the enclosure.

• Educational Satisfaction: The knowledge gained from designing, building, and troubleshooting your own audio equipment is invaluable and deeply satisfying.

• Cost Efficiency: For a fraction of the cost of a commercial, high-quality audio switch box, you can build a unit that is tailored to your exact needs and often boasts superior internal construction.

Conclusion: An Essential Building Block for the Audio Hobbyist

This DIY Audio Switch Board kit is a quintessential component for the modern electronics enthusiast. It serves as a perfect entry point for those new to soldering and audio projects, while also being a useful, time-saving module for experienced builders who need a reliable RCA-to-3.5mm interface. Its simplicity is its strength, providing a foolproof circuit that performs a single job perfectly. While it is a component rather than a complete product, its real value is as the foundational piece of a larger, custom audio routing solution. By integrating it with a selector switch and a sturdy enclosure, you can create a professional-grade audio switch box that rivals commercial units in performance and surpasses them in personal satisfaction. For anyone invested in the DIY audio world, this small, unassuming board is a powerful tool that puts control, quality, and customization directly into the builder’s hands.
